XFrame System by XFrame
Designed for disassembly partition system
Recoverable and reusable framing systems made from radiata pines. Aims for circular economy in the building industry. XFrame is a circular building system. This means linings (and claddings) connect to the frame using easily reversible fixing methods unique to the XFrame system. Reversible wall linings allow changes to be easily made, minimising the mess and waste normally created when change is required.
There are three different versions of XFrame that are based around 3 different modular conditions: 420mm, 525mm and 600mm.
Each modular system is most efficient when forming panels twice as long as its base module (i.e., 840mm, 1050mm or 1200mm). These select modules are designed to match current industry standard modular efficiencies and/or specific wall framing use cases:
XF1200 (90mm and/or 140mm in depth) | Designed for non load-bearing (90mm) and load-bearing (140mm) walls. Our most popular offering based on industry standard modules.
XF840 (114mm in depth) | Designed for non-load bearing internal walls/commercial fit-outs/event infrastructure. The 840mm module is designed for diamond lining arrangements which yields highly efficient lining parts from standard sheets while also offering a highly efficient structural module.
XF1050 (104mm in depth) | The base module of the XFrame Office System and XFrame's Acoustic offering. The 1050 module is designed around 2100mm high wall panels - optimised to be an ideal wall height for enclosed one-to-two-people meeting spaces.
Australia

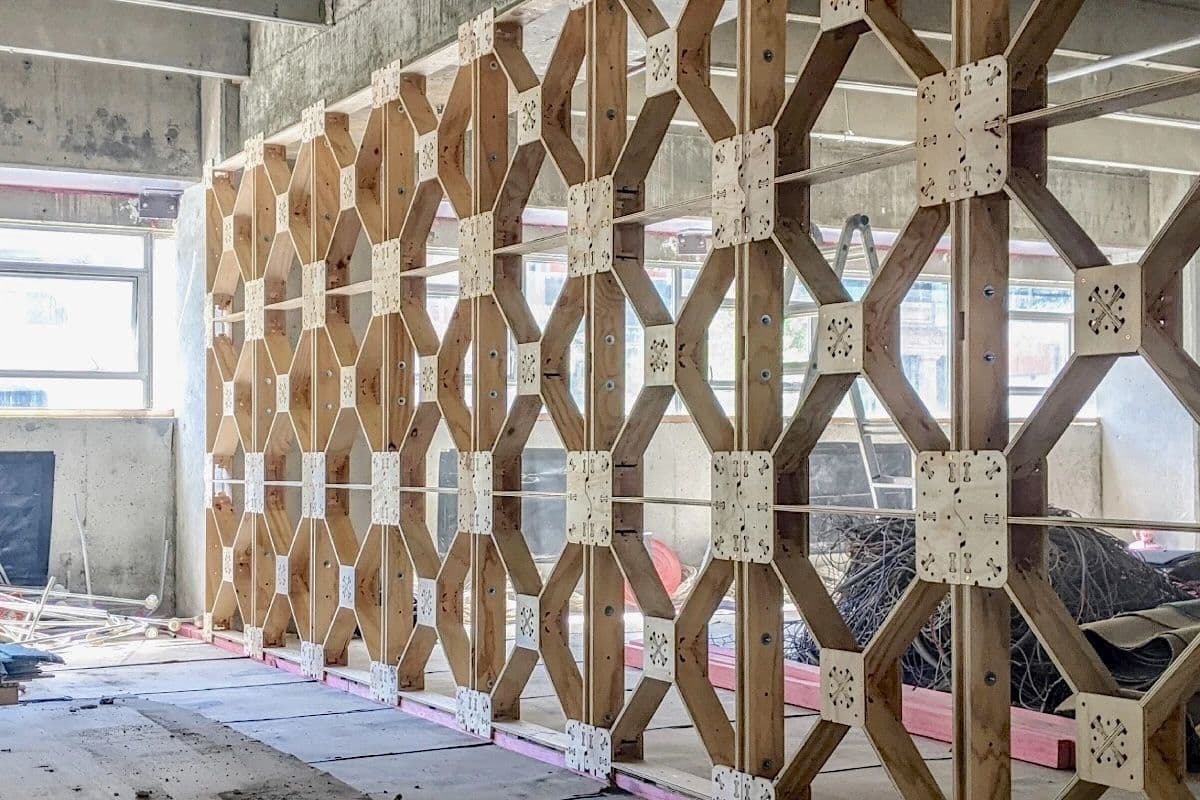

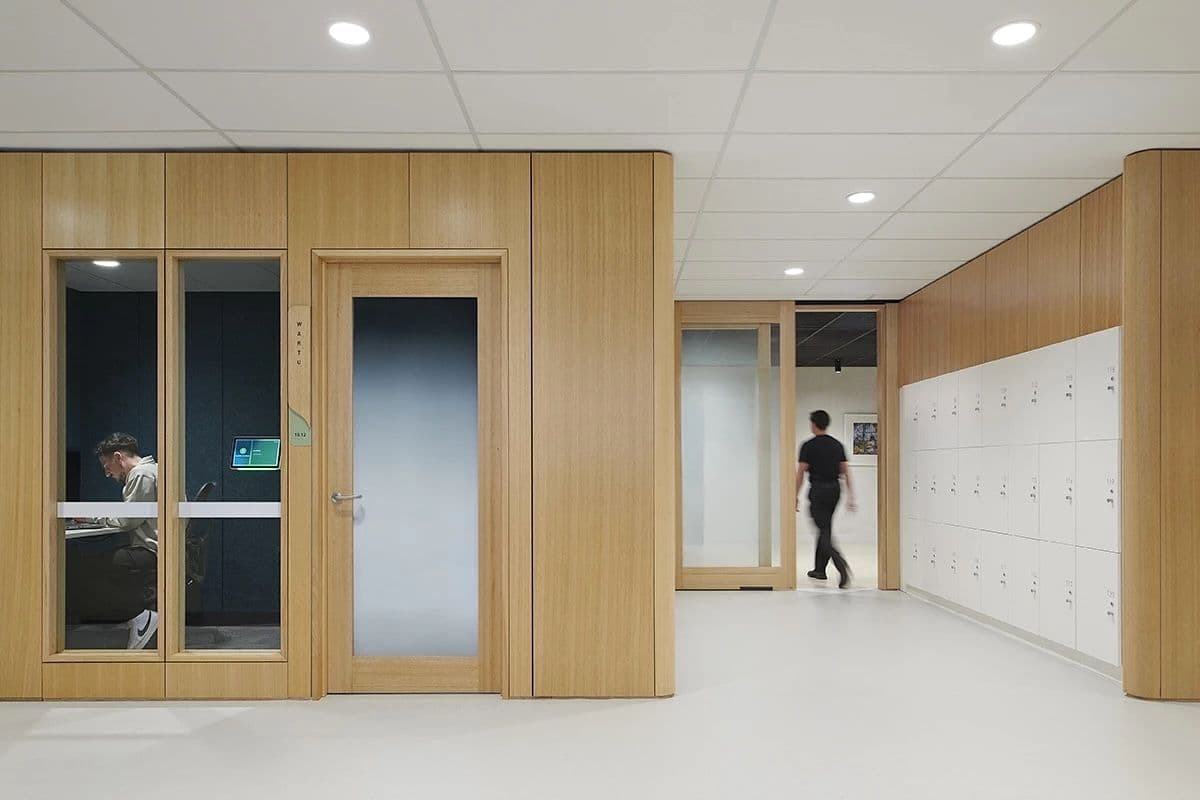

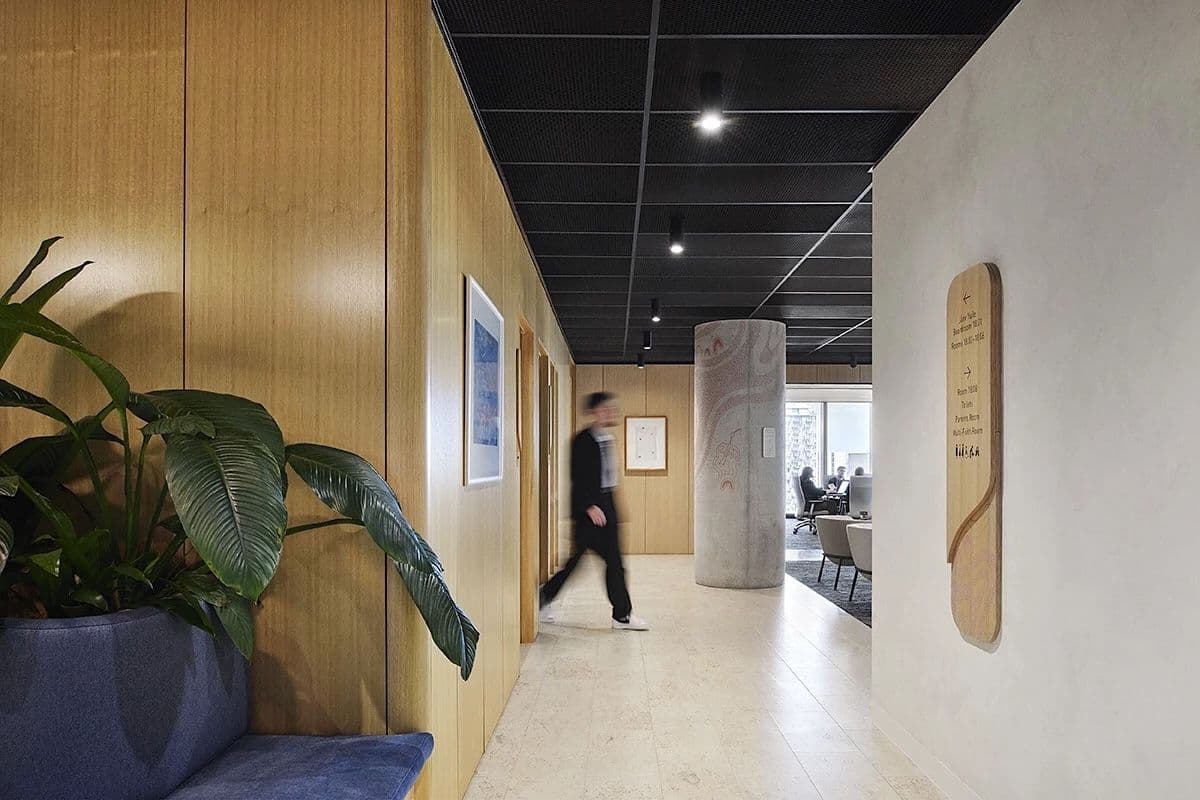

ANZ Adelaide Offices, Woods Bagot
Photography: Woods Bagot.
